Where are cartridge filters used within a winery?

Cartridge filters are used in various applications throughout the winemaking process to ensure wine clarity, stability, and quality. Key applications include:

1. Pre-Filtration: Removing larger particles such as sediment, yeast cells, tartaric acid crystals, or fining agents after racking or prior to further filtration steps. This protects downstream equipment and ensures smoother processing.

2. Clarification: Enhancing the wine's clarity and brightness by filtering out fine particles and haze-forming substances, improving its visual appeal.

3. Microbial Reduction: Reducing the presence of spoilage microorganisms like yeasts and bacteria to safeguard wine stability and prevent unwanted fermentation or spoilage. Key spoilage organisms targeted for removal include Saccharomyces, Brettanomyces, Acetobacter, and Oenococcus. This rigorous validation process ensures that the final membrane filters, typically made of materials like PES, PVDF, or Nylon, offer reliable retention of these organisms.

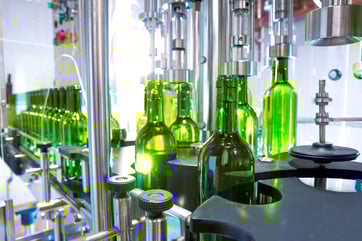

4. Final Sterile Filtration: Using membrane filters to achieve microbial stability before bottling, removing spoilage organisms that could cause turbidity, off-flavors, or microbiological issues post-bottling. For red wine, which typically boasts low sugar content and high tannins, a 0.65 micron membrane filter is often sufficient to ensure microbial stability. White wine, on the other hand, is considered more susceptible to contamination, requiring a finer 0.45 micron membrane filter for optimal protection.

5. Water Filtration: Ensuring clean, filtered water for bottle cleaning and sanitization processes in the winery, which is essential for maintaining hygiene standards.

Incoming Water & Gas Filtration

Within a winery compressed air, CO2 and steam are the primary gases used to support the manufacturing process. Ensuring the quality of these leads to and efficient and effective manufacturing process, but further prevents possible contaminates entering the wine-making process via these sources. The use of both depth and membranes filters acts a guarantee of their quality, so that the winemaker has peace of mind to focus his attention elsewhere in the process.

Filter Wine: Key Considerations

• Filtration removes fermentation debris and yeast, increasing wine stability and preventing changes in appearance and taste over time.
• Filtering also prevents sediment formation, allowing for a smoother taste while still young.
• Wine filtration can be carried out through different porous media, including membranes, filter sheets, and cartons. Always follow the manufacturer’s instructions for assembling and using the filter.
• Consider the pressure and flow rate of the filter: a higher pressure and flow rate can provide better filtering results. Monitor the flow rate and pressure of the filter to ensure optimal performance.
• Make sure to sanitize the filter before use to prevent contamination.
• Consider a filter with a venting system and a vent tube and tap to release trapped air while filtering.
