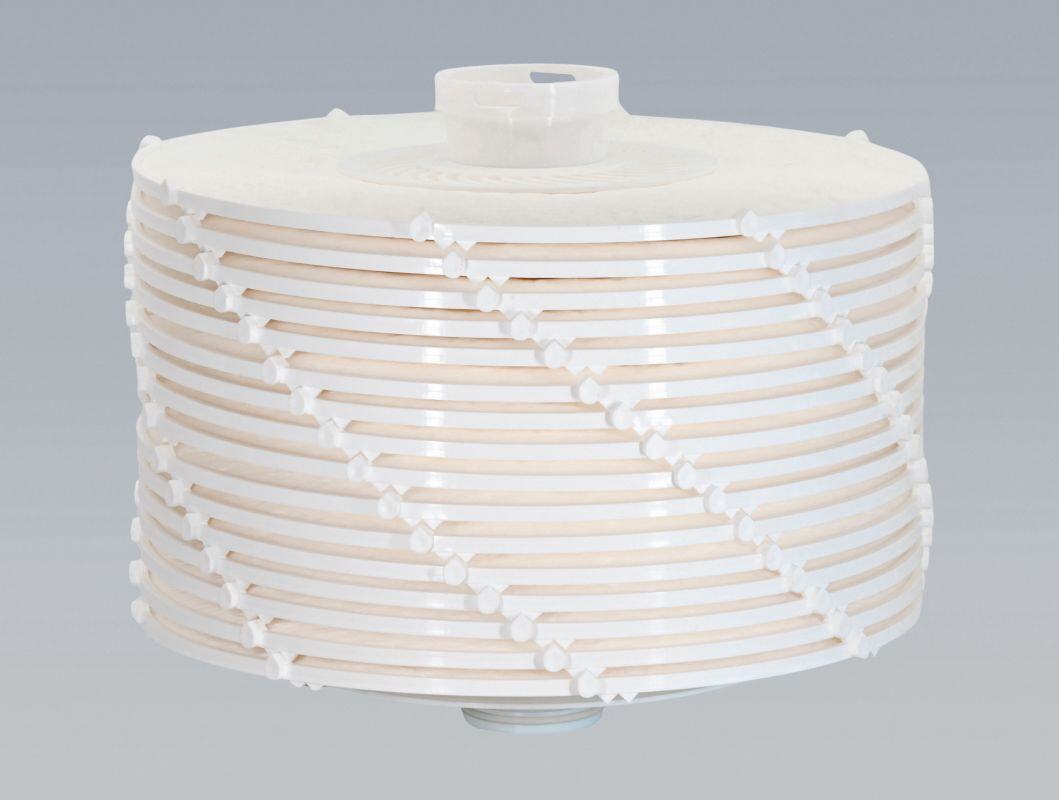

Lenticular Depth Filter Modules
Optimal clarity & minimal product loss
These ORBIFILT® filter modules, containing HOBRAFILT® depth filtersheets, are manufactured according to the highest quality standards. Through filtration on filter modules, you achieve the effect of depth filtration with easier handling, in a closed system, without air access and without leaks.
The inovated ORBIFILT® filter modules have a reinforced polypropylene construction without the use of stainless steel clips, providing protection against mechanical damage. The construction is adapted to make the most efficient use of the total filtration area. This allows ORBIFILT® modules to provide a higher overall filtration capacity, depending on the application and use.
Why Choose PoreFiltration?
-
Extensive product range
-
Best Price GUARANTEED!
-
Specialist support team with deep knowledge of liquid & gas applications
-
Reliable quality and delivery.
Technical Details
-
Filter Medium - various types of cellulose, high quality diatomaceous earth and pearlites
- Manufacturing - HOBRAFILT® filtersheets are manufactured within a controlled quality system ISO 9001 and ISO 14001 and the AIB audit food quality system. The products are in compliance with national, European and American (FDA) standards defining products intended for contact with food.
- Micron ratings - 0.2, 0.3, 0.4, 0.6, 0.8, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 11.0 , 25.0
-
Available sizes - 12" (30cm) - 16 Lenses - Filter area 1.8m2
- 16" (40 cm) - 16 Lenses - Filter area 3.6 m2 -
Maximum differential pressure - 2.5 bar dependent on grade
- Maximum filtration temperature - 85oC
-
Sterilisation & Sanitisation - Steam at 110 oC; Hot water 85 - 90 oC
-
Available end caps - DOE (Flat), DOR (Bayonet)
- Available formats - Lenticular filter module
Applications
- Wine
- Beer
- Alcoholic & non-alcoholic beverages
- Food filtration
- Chemistry, biochemistry and cosmetics
- Pharmacuticals and Biotechnology
- Oil and biofuel
Technical details [Product A]
| Filter Medium | Polypropylene |
| Available Lengths |
9.75" (24.8cm), 10.0" (25.4cm), 20.0" (50.8cm), 30.0" (76.2cm), 40.0" (101.6cm) |
| Available Micron Ratings |
0.5, 1,3, 5, 10, 20, 30, 50, 75, 100μm |
| Internal Diameter |
1.1" (28mm) / 4.5" (114mm) |
| External Diameter |
2.5" (63mm) |
| Max Operating Temperature | XX degrees |
| Maximum Differential Pressure |
60psid @ 70°F (4.1 Bar @ 30°C) 50psid @ 122°F (3.4 Bar @ 50°C) 30psid @ 158°F (2 Bar @ 70°C) 15psid @ 180°F (1 Bar @ 82°C) |
| Recommended Changeout Differential Pressure |
37psid (2.5 Bar) @ 30°C |
| Regulatory |
All filter bags are supplied free of Silicone. FDA Approved. EU XXX. |
| Datasheets |
Other Related Products

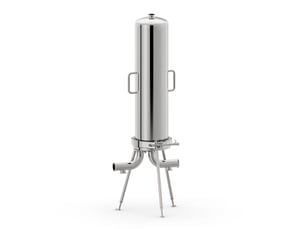

Single Cartridge Hygienic Housings
