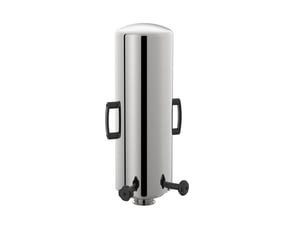

PVV Heated Sterile Vent Filter Housings are designed to allow storage and product tanks operating at elevated temperatures to breathe safely while filling and emptying. The gas is sterile filtered as it passes through the cartridge that the heated vent filter housing holds. Heated Sterile vent housings accept wide bore Code 7 cartridges to minimise pressure loss and maximise gas flow.
Our PVV Heated Sterile Vent Filter Housings are paired with SurePore Gas PTFE membrane or PurePore Gas GF cartridges to offer a one-stop shop solution.
Technical details
Housing material - 316 st.st
Housing Length - 10", 20" ,30"
No: of cartridges housed - 1 - Larger sizes upon request
Cartridge mounting style - SOE (Code 7)
Surface finish - Internal: Mechanical polish/Fine brushed - External: Mirror polished
Inlet/Outlet connections - ASME BPE, Flanged, Butt weld
Closure type options - V-Clamp
Design codes - PED, ATEX
Suitable for SIP/CIP - Yes
Applications
Technical details [Product A]
| Filter Medium | Polypropylene |
| Available Lengths |
9.75" (24.8cm), 10.0" (25.4cm), 20.0" (50.8cm), 30.0" (76.2cm), 40.0" (101.6cm) |
| Available Micron Ratings |
0.5, 1,3, 5, 10, 20, 30, 50, 75, 100μm |
| Internal Diameter |
1.1" (28mm) / 4.5" (114mm) |
| External Diameter |
2.5" (63mm) |
| Max Operating Temperature | XX degrees |
| Maximum Differential Pressure |
60psid @ 70°F (4.1 Bar @ 30°C) 50psid @ 122°F (3.4 Bar @ 50°C) 30psid @ 158°F (2 Bar @ 70°C) 15psid @ 180°F (1 Bar @ 82°C) |
| Recommended Changeout Differential Pressure |
37psid (2.5 Bar) @ 30°C |
| Regulatory |
All filter bags are supplied free of Silicone. FDA Approved. EU XXX. |
| Datasheets |

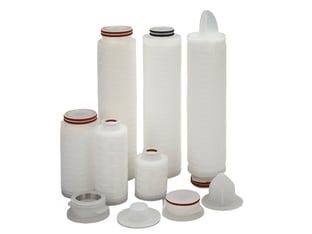

PTFE membrane filter cartridge range rated at 0.02 micron suitable for all existing and new compressed gas and vent applications.

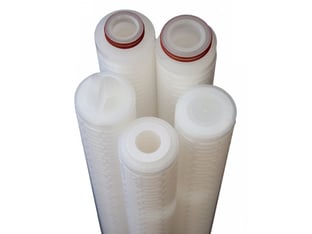

Glass fibre depth filter cartridge range rated at 0.02 micron suitable for existing or new food, beverage & process water applications.
Designed for gas sterilizing applications in food & beverage, water treatment and pharmaceuticals
