Sterile Gas Depth Filters
When the highest flow and longest service life filter is required

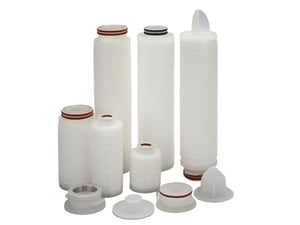

Our sterile gas depth cartridge filter range combines established depth filter technology, with a pleated high surface area construction, and validated sterile filtration to 0.02 micron in gas. These PurePore sterile gas GF filters contain pleated borosilicate glass fibre media, surface modified with fluoropolymer to providing hydrophobic properties, allowing operation where small amounts of condensate are present.
Flow rates of PurePore sterile gas GF filters are typically 2-3 times that of PTFE membrane filters, such as SurePore Sterile Gas PTFE and this that dramatically reduces cartridge usage and/or installation size impacting running and capex costs.
Original domnick hunter Bio-X retrofits available upon request.
Why Choose PoreFiltration?
-
Extensive product range
-
Best Price GUARANTEED!
-
Specialist support team with deep knowledge of liquid & gas applications
-
Reliable quality and delivery.
Technical details
-
Filter Medium: Surface modified borosilicate microfibre
-
Available lengths: 5.0" (AB05), 10.0", 20.0", 30.0" (No increase in flow with 30", but extends service life)
-
Available micron rating: 0.02µm in gas (condensate free) - Absolute sterilising grade validated by aerosol and viral challenges
-
Sterilizable - Steam-in-place 140℃, Autoclave 121℃
-
Maximum differential pressure - Reverse 5.2 bar @ 25℃, 1.9 bar @ 82℃
- Quality control - 100% integrity tested; Cartridge fully traceable; All material comply with relevant CFR21 requirements: Bacteria Aersol Challenge Test TR≥1011 Full validation available upon request.
-
Available end caps - Wide bore code 7 with St.St insert option, junior and capsule
- Available formats: Cartridge, Capsules and Junior - Original domnick hunter Bio-X retrofits available
Applications
- Tank and vessel venting
- Fermentation inlet gas/ off-gas filtration
- Compressed air/ gas filtration
- Autoclave/ lyophiliser vacuum break
- Phage removal and clean gases for filling in dairy and food processing.
- Sterile filtration of gases used in filling and bottling equipment in the food and beverage sector.
Technical details [Product A]
| Filter Medium | Polypropylene |
| Available Lengths |
9.75" (24.8cm), 10.0" (25.4cm), 20.0" (50.8cm), 30.0" (76.2cm), 40.0" (101.6cm) |
| Available Micron Ratings |
0.5, 1,3, 5, 10, 20, 30, 50, 75, 100μm |
| Internal Diameter |
1.1" (28mm) / 4.5" (114mm) |
| External Diameter |
2.5" (63mm) |
| Max Operating Temperature | XX degrees |
| Maximum Differential Pressure |
60psid @ 70°F (4.1 Bar @ 30°C) 50psid @ 122°F (3.4 Bar @ 50°C) 30psid @ 158°F (2 Bar @ 70°C) 15psid @ 180°F (1 Bar @ 82°C) |
| Recommended Changeout Differential Pressure |
37psid (2.5 Bar) @ 30°C |
| Regulatory |
All filter bags are supplied free of Silicone. FDA Approved. EU XXX. |
| Datasheets |
Other Related Products

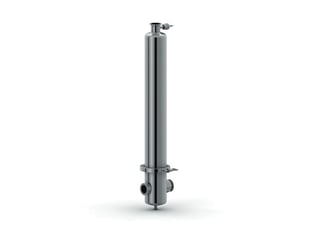

Sterile Gas Filter Housings
Filter housings for sterile compressed gas filtration in food, beverage, process water and healthcare applications.

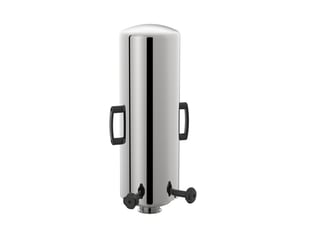

Sterile Vent Filter Housings
