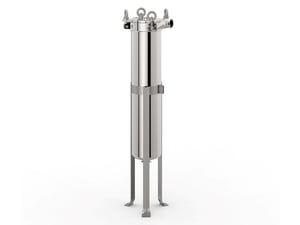

Hygienic Bag Filter Housings

When cleanliness in product contact is essential

pvbh-hygienic-bag-filter-range

Our hygienic bag filter housings are designed to deliver reliable and efficient filtration for the food and beverage industry. Built to accommodate 7″ diameter filter bags or stainless steel mesh baskets, these systems provide versatile solutions for removing particulates and maintaining the highest standards of product quality and safety.


Crafted from 316L stainless steel, each filter housing meets strict food-grade specifications and is available with a range of sanitary connection fittings, such as triclamps, DIN11851, RJT, or SMS. This ensures easy integration into your production process, making our filtration systems an ideal choice for various applications.

Why Choose PoreFiltration?

  • Extensive product range
  • Best Price GUARANTEED!
  • Specialist support team with deep knowledge of liquid & gas applications
  • Reliable quality and delivery.

Technical details

  • Housing material - 316 st.st

  • Typical flowrates - Up to 100 m3/hr

  • Bag Lengths - Size 1 & 2

  • Bag Diamter - 7"

  • No: of cartridges housed - 1

  • Inlet/Outlet connections - Triclamp, ASME BPE and DIN 11851

  • Inlet/Outlet configuration: Side inlet and bottom outlet ensures complete drainage. Easy for cleaning/flushing.

  • Drain/vent connections - Triclamp

  • Surface finish options - Internal: Electropolished Ra<0.8/ External: Mechanical polish or Electropolished.

  • Design code - PED

  • Suitable for SIP/CIP - Yes

Applications

  • In general, remove and control particulate contamination in solutions or liquids
  • Chemicals used in production of Pharma APIs.
  • Process water used in food production
  • Healthcare inclusive of creams and viscous liquids
  • Beverages inclusive beer, spirits, honey, kombucha and soft drinks

Need a Replacement?

Order Now

Get a Quick Quote?

Ask an Expert

Speak to an Expert

+44(0) 203 750 8060

Technical details [Product A]

Filter Medium Polypropylene
Available Lengths

9.75" (24.8cm), 10.0" (25.4cm), 20.0" (50.8cm), 30.0" (76.2cm), 40.0" (101.6cm)
Available Micron Ratings

0.5, 1,3, 5, 10, 20, 30, 50, 75, 100μm
Internal Diameter

1.1" (28mm) / 4.5" (114mm)
External Diameter

2.5" (63mm)
Max Operating Temperature  XX degrees
Maximum Differential Pressure

 60psid @ 70°F (4.1 Bar @ 30°C) 50psid @ 122°F (3.4 Bar @ 50°C) 30psid @ 158°F (2 Bar @ 70°C) 15psid @ 180°F (1 Bar @ 82°C)
Recommended Changeout Differential Pressure

37psid (2.5 Bar) @ 30°C
Regulatory

All filter bags are supplied free of Silicone. FDA Approved. EU XXX.
Datasheets

DOWNLOAD DATASHEET



Related Products

Filter Bags - Industrial and Food Grade

range-of-bag-filters

Available in a number of non-woven felts - PP, PE, Nylon, Nomex and PTFE. Micron ratings from 1 to 200 microns

View the product

Filtration Systems and Skids

filtration-system

We offer custom solutions such as skid-mounted configurations, duplex systems, jacketed for viscous fluids, and series arranged multiple filter housings.

View the product

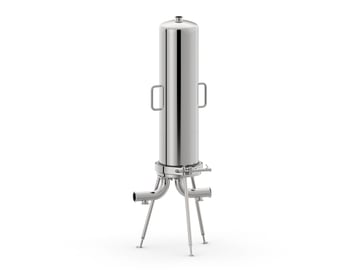

Hygienic Filter Housings

PVS-range-of-sanitary-housings

316 st.st single and multi-round housings suitable for sterile or hygienic liquid filter applications, flows up to 75m3/hr and pressure rated to 10 bar.

View the product
