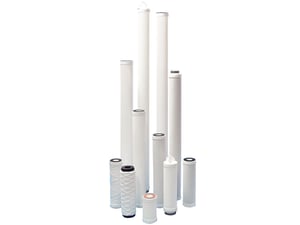

Designed for applications that struggle with the pressure drops associated with carbon block cartridges. ClearPore carbon felt cartridges are designed to offer an economic alternative using a pleated carbon impregnated felt construction to increase flow rate and ensure contamination removal is maintained for the maximum possible service period.
Technical details
Filter Medium: Carbon impregnated felt
Cartridge hardware: Polypropylene end caps, core, wrap and netting
Available lengths: 10.0", 20.0", 30.0", 40.0"
Available micron rating: 5μm
Available end caps: DOE, Code 7, 2, 8 and 3
Applications
Technical details [Product A]
| Filter Medium | Polypropylene |
| Available Lengths |
9.75" (24.8cm), 10.0" (25.4cm), 20.0" (50.8cm), 30.0" (76.2cm), 40.0" (101.6cm) |
| Available Micron Ratings |
0.5, 1,3, 5, 10, 20, 30, 50, 75, 100μm |
| Internal Diameter |
1.1" (28mm) / 4.5" (114mm) |
| External Diameter |
2.5" (63mm) |
| Max Operating Temperature | XX degrees |
| Maximum Differential Pressure |
60psid @ 70°F (4.1 Bar @ 30°C) 50psid @ 122°F (3.4 Bar @ 50°C) 30psid @ 158°F (2 Bar @ 70°C) 15psid @ 180°F (1 Bar @ 82°C) |
| Recommended Changeout Differential Pressure |
37psid (2.5 Bar) @ 30°C |
| Regulatory |
All filter bags are supplied free of Silicone. FDA Approved. EU XXX. |
| Datasheets |
Single cartridge st.st housings for industrial liquid and steam applications for flows from 1 to 5 m3/hr and rated at 8, 16 and 40 bar.

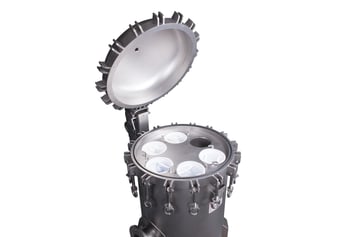

Single or multi-bag st.st. housings for industrial liquid applications for flows from 1 to 200 m3/hr and rated to 10bar.
Available in a number of non-woven felts - PP, PE, Nylon, Nomex and PTFE. Micron ratings from 1 to 200 microns
