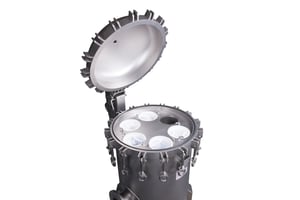

Industrial Bag Filter Housings

Prefiltration and final filtration in process applications

bag-filter-housing

Our industrial bag filter housings are available in a wide range of configurations and sizes, providing the flexibility and scalability needed to meet your unique operational demands. Constructed from various materials to suit different process conditions, our housings are compatible with standard connections such as BSP, PN16 flanges, Triclamp, and DIN1851.


Engineered for durability and ease of use, all our filter housings feature robust construction and operator-friendly designs. Additionally, they fully comply with the EU Pressure Equipment Directive 2014/68/EU, ensuring reliable performance and safety in demanding industrial environments.

Why Choose PoreFiltration?

  • Extensive product range
  • Best Price GUARANTEED!
  • Specialist support team with deep knowledge of liquid & gas applications
  • Reliable quality and delivery.

Technical details

  • Housing material - 304, 316 st.st, Plastic

  • Bag Lengths - Size 1, 2, 3, 4

  • Bag Diamter - 7" & 4"

  • Number of Bags housed - 1, 4, 6, 8, 10, 12

  • Inlet/Outlet standard connections - Butt weld, BSPF, PN16 flange

  • Inlet/Outlet configuration: Side inlet and bottom outlet ensures complete drainage. Easy for cleaning/flushing.

  • Internal configuration - Flow is split equally through each filter bag ensuring an even distribution of solid loading. Designed for easy for cleaning or flushing.

  • Closure types - V-clamp, bolted or swing bolts used in demanding applications.

  • Design codes - PED, ATEX, ASME

  • Suitable for SIP/CIP - No

  • Options - On request other materials, connections, pressure ratings available

Applications

  • Chemicals, Oils & Coolants
  • Paints & coatings
  • Healthcare - Viscous materials at high temperature
  • Food & Beverage - potable water, beer, spirits, non-alcoholic beverages, flavour infusions
  • Sidestream systems chilled and hot recirculating water in building services
  • Water and wastewater - Process cooling water, protection of valves and high pressure pumps by reducing suspended solids

Need a Replacement?

Order Now

Get a Quick Quote?

Ask an Expert

Speak to an Expert

+44(0) 203 750 8060

Technical details [Product A]

Filter Medium Polypropylene
Available Lengths

9.75" (24.8cm), 10.0" (25.4cm), 20.0" (50.8cm), 30.0" (76.2cm), 40.0" (101.6cm)

Available Micron Ratings

0.5, 1,3, 5, 10, 20, 30, 50, 75, 100μm

Internal Diameter

1.1" (28mm) / 4.5" (114mm)

External Diameter

2.5" (63mm)

Max Operating Temperature  XX degrees
Maximum Differential Pressure

 60psid @ 70°F (4.1 Bar @ 30°C) 50psid @ 122°F (3.4 Bar @ 50°C) 30psid @ 158°F (2 Bar @ 70°C) 15psid @ 180°F (1 Bar @ 82°C)

Recommended Changeout Differential Pressure

37psid (2.5 Bar) @ 30°C

Regulatory

All filter bags are supplied free of Silicone. FDA Approved. EU XXX.
